? Outdoor or indoor use.
? For use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables.
? Provides armour clamping using one clamping arrangement for all armour / braid types.
? Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68 -

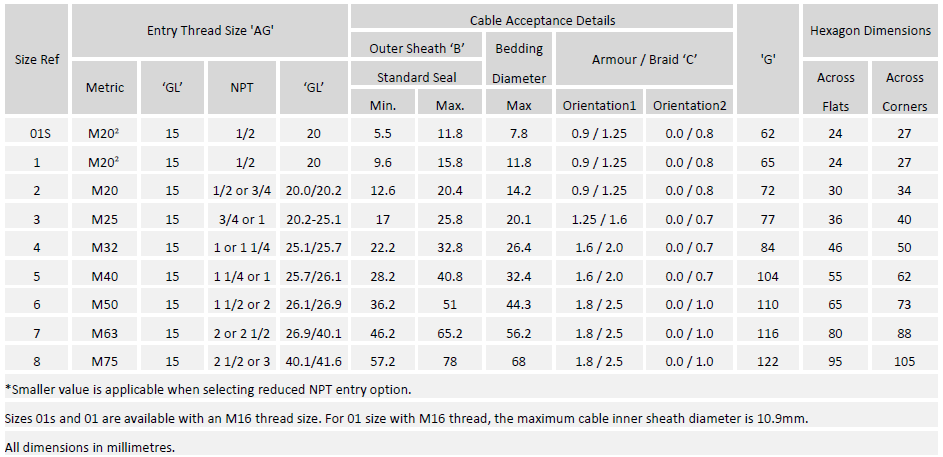

Selection table
-

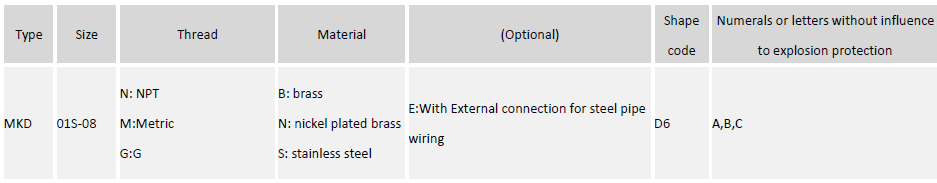

Ordering information
|
