The DWEC Series device is designed to meet the requirement of flameproof and dust ignition protection.
The material of all enclosure is SS304 or SS316L.
The DWEC Series device has three main parts and manufactured of three types of models; three main parts are camera enclosure, tilt enclosure, pan/base enclosure. Within the pressure-resistant camera enclosure, various camera modules and lenses reflecting different technical specifications. Accessory components such as PTC heating elements, miniature fans, NIR LED,lighting devices, mechanical components and clamps made of aluminum are optional. Criteria for selecting the camera module are, for example, trans-mission technology (digital or analog), control functions (IR cut filter, iris, focus), light sensitivity, angle of view, object distance, resolution, optical zoom range, frame rate, or transmission delay. Thermal imaging applications are possible as well.
The camera module is in camera enclosure and also motors, gears, bearings and shafts in pan & tilt enclosure provide positioning camera with reasonable accuracy.
Service hotline：
0523-88317000 88318288
-
Featues
? It can carry HD-IP HD network camera core, HD-SDI high-definition digital camera core and traditional analog camera core.
? Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System and Integrated Optics Package (IOP)
? Pelco D/P standard. Vicon Protocol upon request
? Supports Advanced OSD Menu
? Multiple Language options
? optional automatic heating assembly. The automatic heating module can ensure the equipment work stably for a long time between -50℃ and +65℃ centigrade. -
Ａpplications
The DWEC is designed and ATEX/IECEX certified for use in hazardous area locations and areas with extreme weather conditions such as:
?Chemical Plants ?Petrochemical Plant
?Off shore Drilling Rigs ?Land-based Drilling Rig
?Tankers and Tanker Depots ?Fueling Stations
?Bulk Loading Stations ?Fertilizer Plants
?Defense & Aerospace Installations ?Gas Plants
?Munitions Storage Depots ?Liquefied Natural Gas Terminals
?Oil & other Refineries ?Oil & Gas Metering Facilities
?Paint & Varnish Manufacturing Plants ?Grain Processing & Similar Industries -

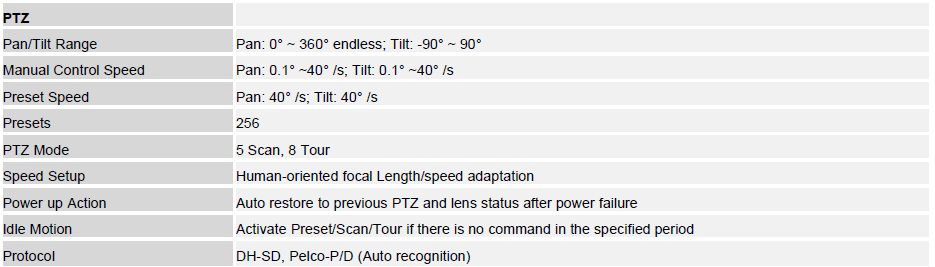

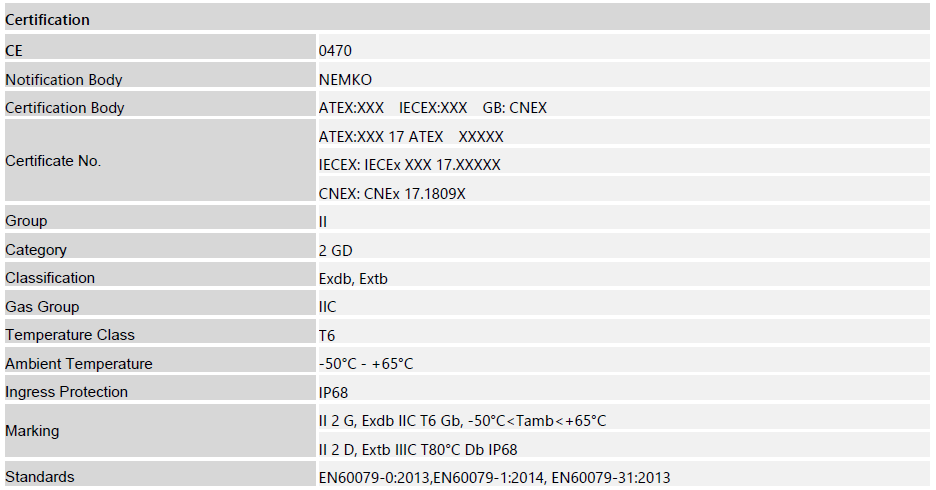

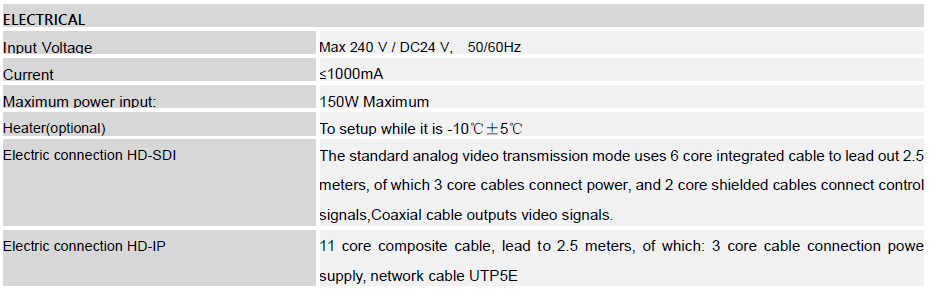

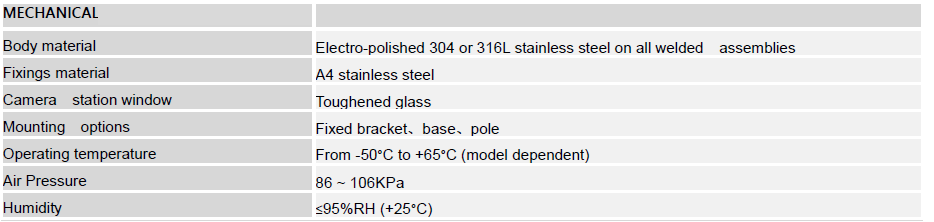

Specifications
Details of the camera are shown in the user's manual provided by the camera manufacturer
-

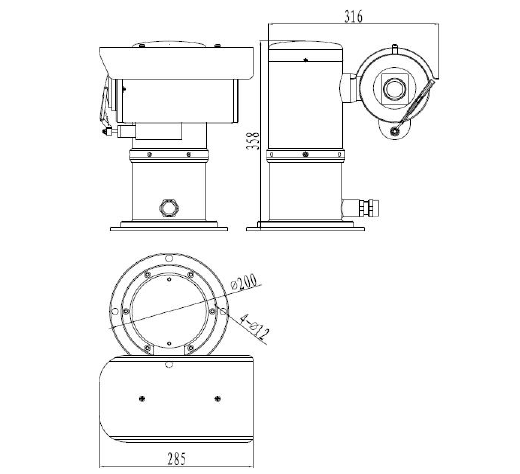

Dimensions
-

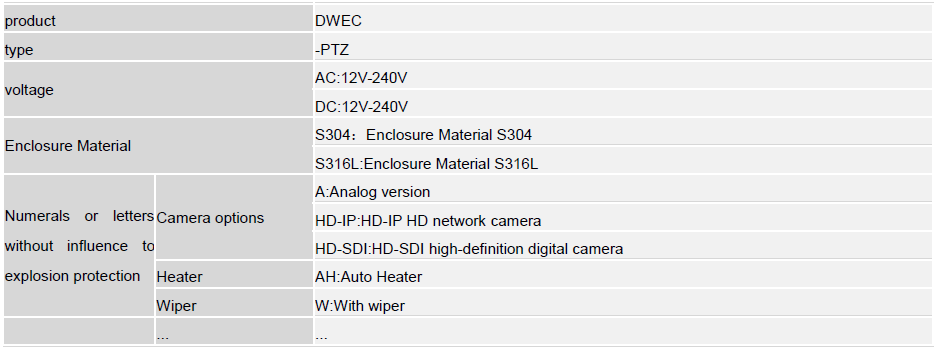

Type explantion
Dewei pursues a policy of continuous improvement therefore specifications are subject to change without prior notice.
|
