The DWEC series Explosion-Proof fixed camera station is protected by flameproof enclosure “ d” , it consists of
cylinder assembly, front cover, rear cover and inspection window, it’ s applicable for both explosive gas and dust atmosphere. The enclosure is made of S304 or S316L stainless steel with electro-polish finish. The inspection window mounted in the front cover the is made of 10mm thick toughened glass .Within the pressure-resistant enclosure, various camera modules and lenses reflecting different technical specifications.
Accessory components such as PTC heating elements, miniature fans, NIR LED, lighting devices, mechanical components and clamps made of aluminum are optional. Criteria for selecting the camera module are, for example, trans-mission technology (digital or analog), control functions (IR cut filter, iris, focus), light sensitivity, angle of view, object distance, resolution, optical zoom range, frame rate, or transmission delay.
Thermal imaging applications are possible as well.
Service hotline：
0523-88317000 88318288
-
General product information
The DWEC series Explosion-Proof fixed camera station is protected by flameproof enclosure “ d” , it consists of cylinder assembly, front cover, rear cover and inspection window, it’ s applicable for both explosive gas and dust atmosphere. The enclosure is made of S304 or S316L stainless steel with electro-polish finish. The inspection window mounted in the front cover the is made of 10mm thick toughened glass .Within the pressure-resistant enclosure, various camera modules and lenses reflecting different technical specifications.Accessory components such as PTC heating elements, miniature fans, NIR LED, lighting devices, mechanical components and clamps made of aluminum are optional. Criteria for selecting the camera module are, for example, trans-mission technology (digital or analog), control functions (IR cut filter, iris, focus), light sensitivity, angle of view, object distance, resolution, optical zoom range, frame rate, or transmission delay.
Thermal imaging applications are possible as well. -
Featues
analog camera core.
? Fully Integrated Receiver, Pan/Tilt, Enclosure, Wiper System and Integrated Optics Package (IOP)
? Pelco D/P standard. Vicon Protocol upon request
? Supports Advanced OSD Menu
? Multiple Language options
? optional automatic heating assembly. The automatic heating module can ensure the equipment work stably for a long time between -50℃ and +65℃ centigrade. -
Ａpplications
The DWEC is designed and ATEX/IECEX certified for use in hazardous area locations and areas with extreme weather
conditions such as:
?Chemical Plants ?Petrochemical Plant
?Off shore Drilling Rigs ?Land-based Drilling Rig
?Tankers and Tanker Depots ?Fueling Stations
?Bulk Loading Stations ?Fertilizer Plants
?Defense & Aerospace Installations ?Gas Plants
?Munitions Storage Depots ?Liquefied Natural Gas Terminals
?Oil & other Refineries ?Oil & Gas Metering Facilities
?Paint & Varnish Manufacturing Plants ?Grain Processing & Similar Industries -

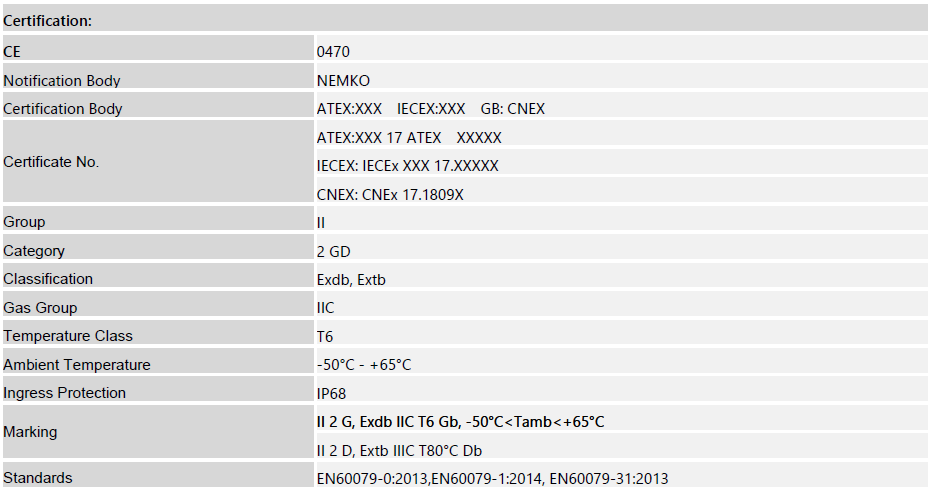

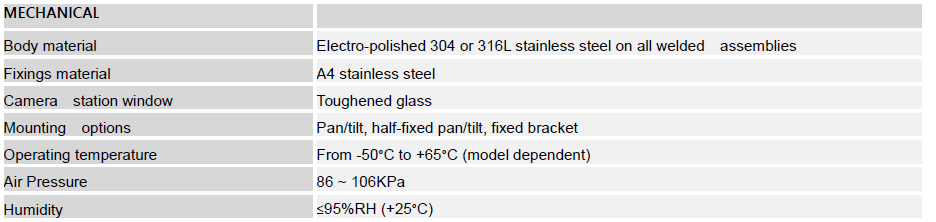

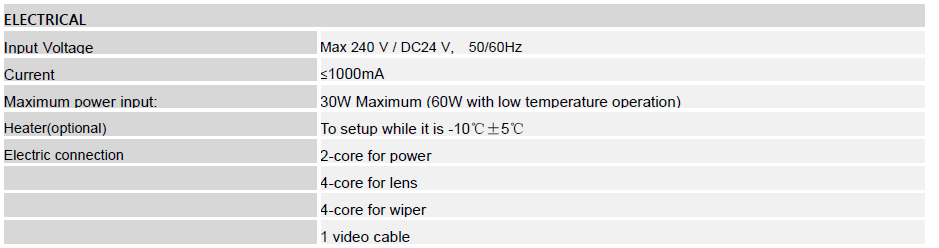

Specifications
Details of the camera are shown in the user's manual provided by the camera manufacturer
-

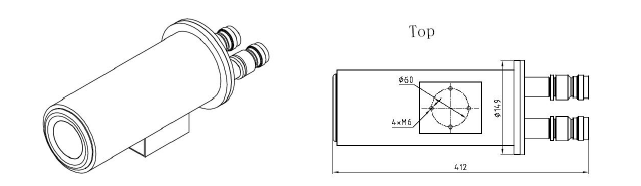

Dimensions
-

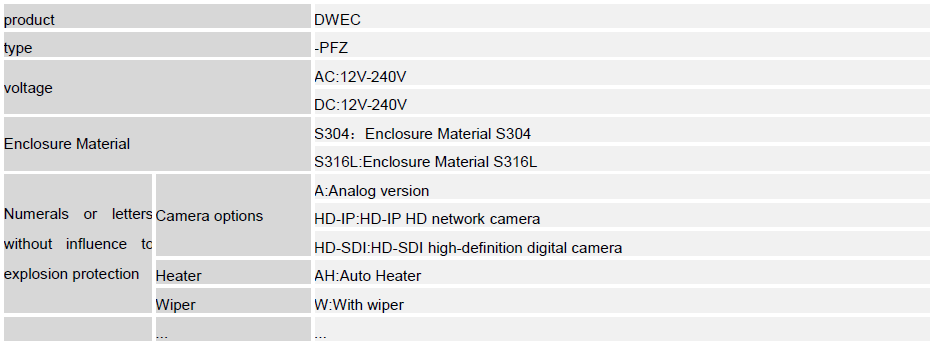

Type explantion
Dewei pursues a policy of continuous improvement therefore specifications are subject to change without prior notice.
|
