EWT series pendant light fittings fixtures have been specially designed for both indoor and outdoor lighting in industrial processes, are ideal for all general lighting applications in hazardous dust areas in zones 21 and 22.
The lights are available in 2 sizes: The small enclosure for lamps from 70 W to 250 W (preferably 70 -150 W); the large enclosure for lamps of 250 W and 400 W. All versions can be operated with both HSE and HIE lamps and are suitable for low and medium suspension heights.Thanks to their high degree of ingress protection and wide temperature range, this series can also be used under extreme conditions.
Service hotline：
0523-88317000 88318288
-

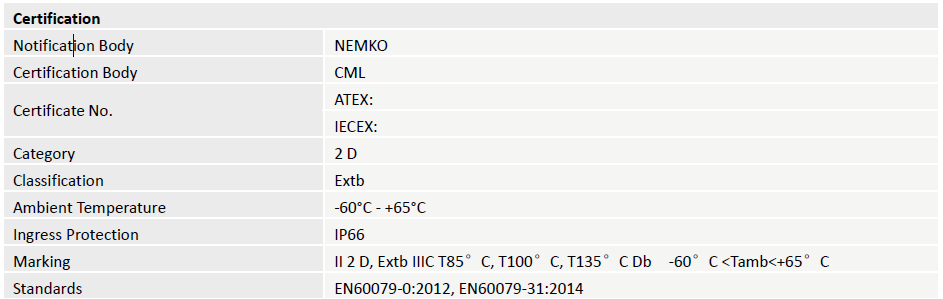

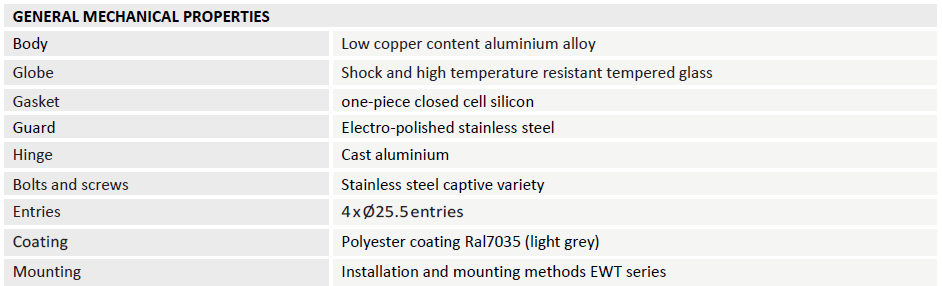

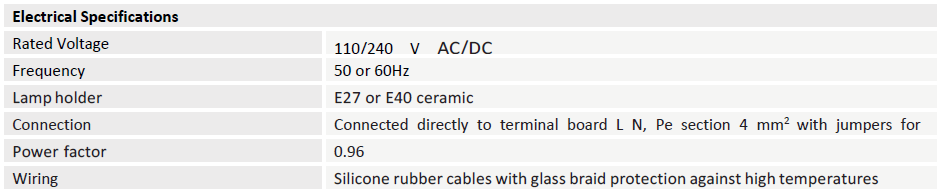

technical parameter
-

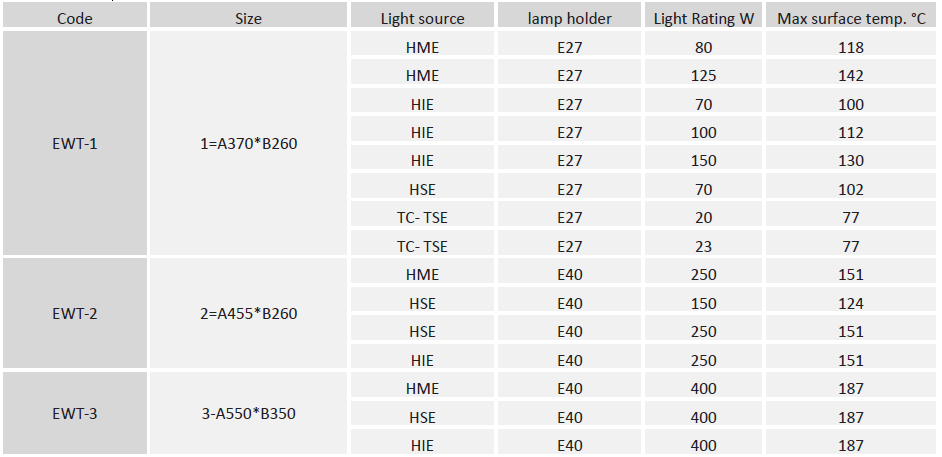

Order Specifications Table
Please refer to the below table for ordering. If you need more information, please contact our sales representative for assistance.
-

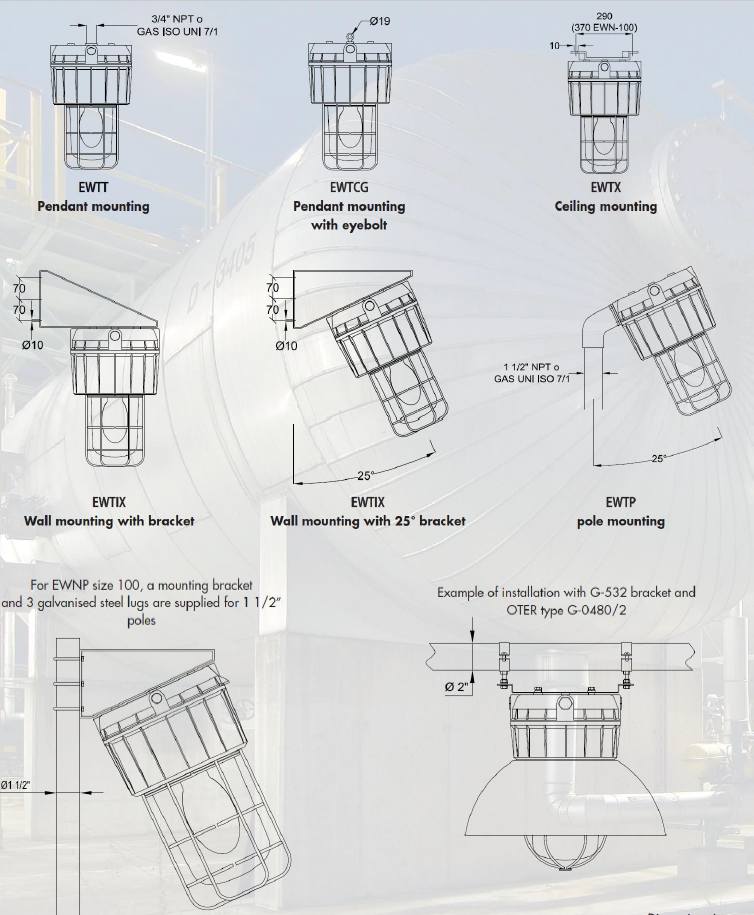

DIMENSIONAL DRAWING
-

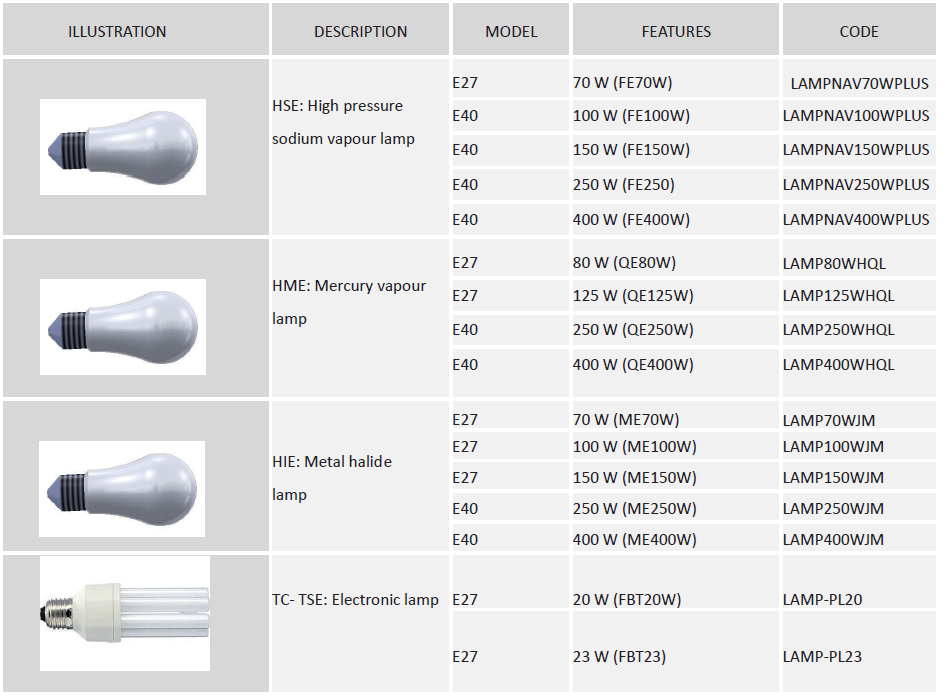

lamp
-

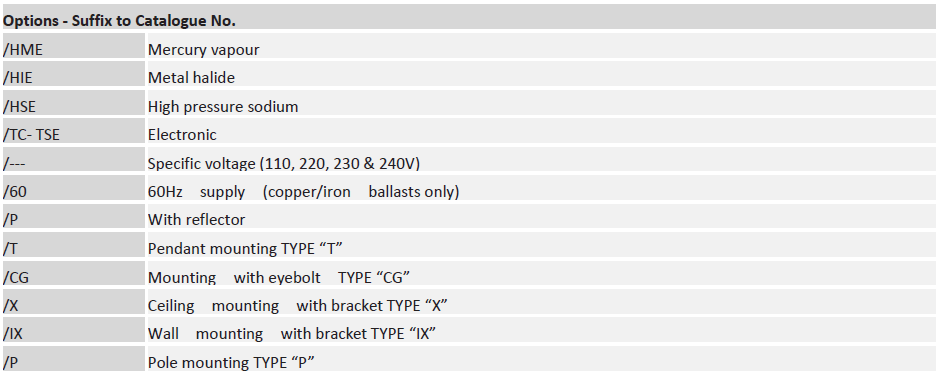

Types of standard installation
(to require in order using the relevant code lower down indicated) Below are shown the standard installationversions and their codes.
In order, the related code is indicated separately from that used for lighting fixture.
|
Please write what you need, we will contact you asap!
Give technical advice within 30 minutes | Provide program design within 24 hours | Send domestic / foreign engineers within 24/72 hours
|
