Outdoor or indoor use.
Suitable for the following cable types-
(a)Non-armoured cable;
(b)Marine shipboard cable Type P cable.
Sealing Area : Cable Outer Sheath - Single Compression.
When used in Increased Safety applications, this cable gland maybe used with braided cable where the braid and the outer sheathpass into the enclosure. The braid must then be suitablyterminated inside the enclosure.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:
II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

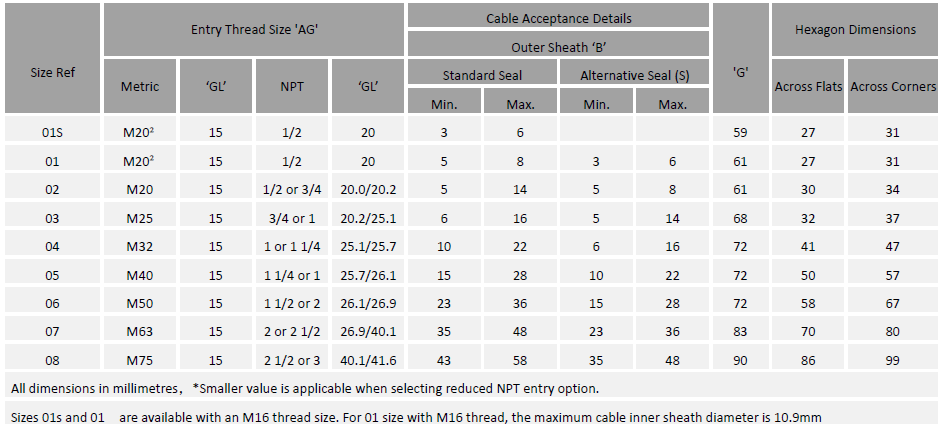

Selection table
-

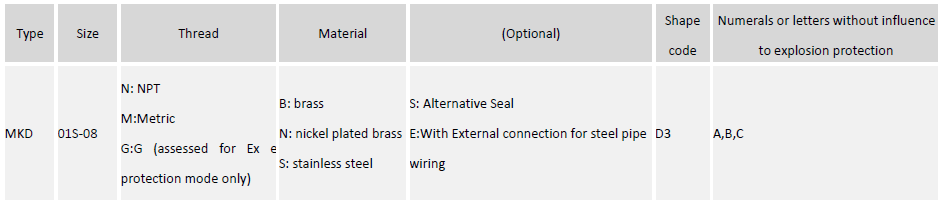

Ordering information
|
