Outdoor or indoor use.
For use with single wire armour ‘W’, wire braid ‘X’, steel tapearmour ‘Z’, elastomer and plastic insulated cables.
For particular use with Cables that exhibit ‘Cold Flow’characteristics.
Provides armour clamping using one clamping arrangement for allarmour / braid types.
Provides a diaphragm seal on inner sheath of cable which will not damage cables that exhibit ‘Cold Flow’ characteristics.
Provides an outer deluge seal to prevent moisture ingress to the cable armour / braid.
Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath.
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68* (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X.
? Operating Temperature Range: -60°C to +140°C.
? Deluge Protection to DTS01.
? Material: brass, nickel plated brass or stainless steel 304、316L
? Ex-marking:II 2 GD
Ex d IIC Gb Ex e IIC Gb Ex tb IIIC Db IP68 -

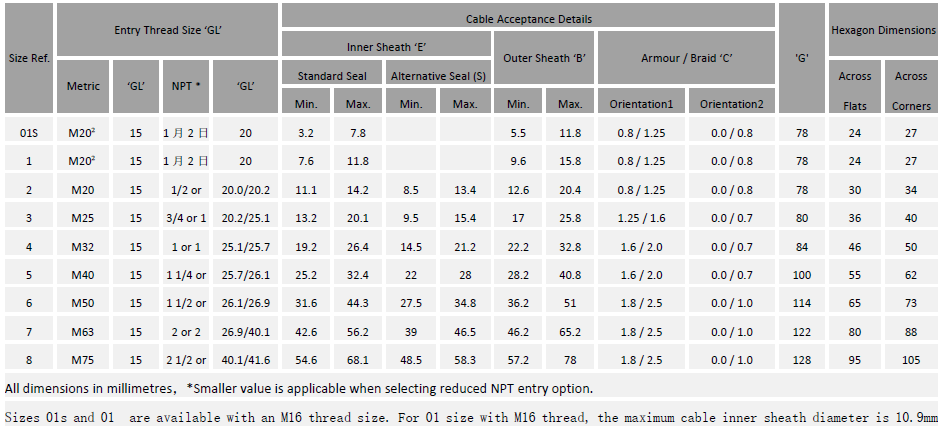

Selection table
-

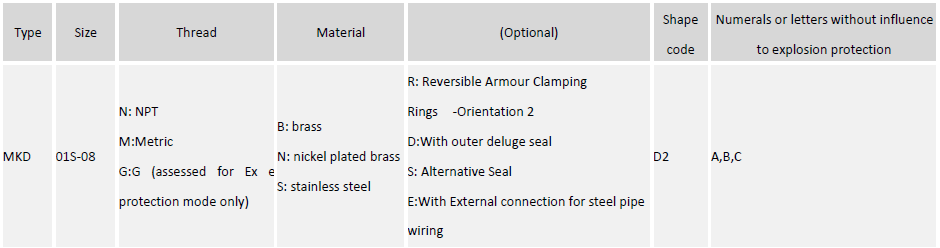

Ordering information
|
