? Outdoor or indoor use.
? With oil resistance, acid resistance, corrosion resistance, aging resistance,explosion proof, waterproof, dust proof performance, good flexibility,compact structure, strong connection
? According to user requirements, the pipe joint thread can be configured with ISO, G and NPT thread
Service hotline：
0523-88317000 88318288
-
Technical Data
? Suitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and in Gas Groups IIA, IIB and IIC.
? Construction and Test Standards: IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
? Ingress Protection: IP66, IP67 and IP 68.
? Operating Temperature Range: -60°C to +140°C.
? Material: stainless steel 、casting steel (galvanized) 、marine grade copper free aluminium light alloy.
? Ex-marking: II 2 GD
Ex e IIC Gb Ex tb IIIC Db IP68
-

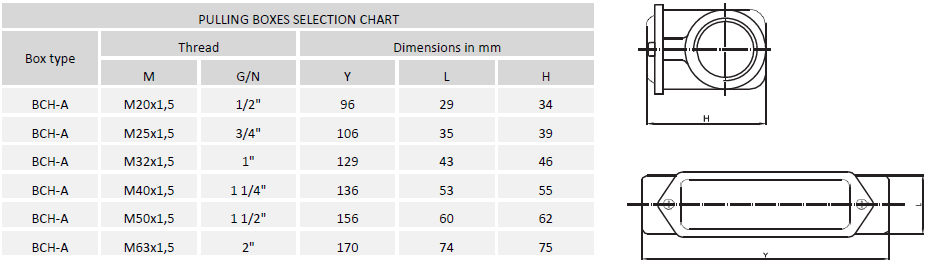

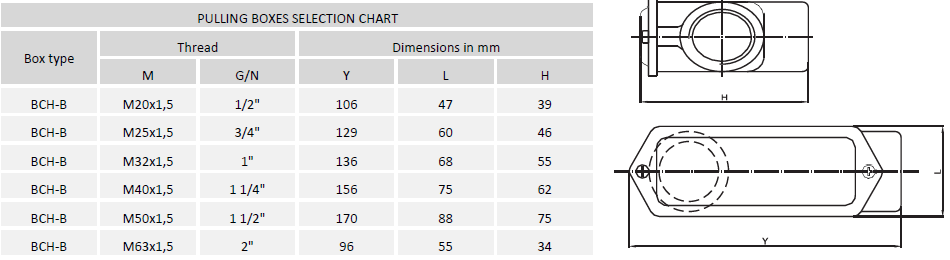

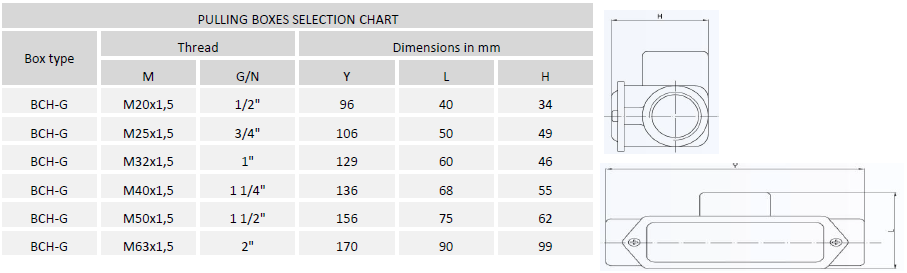

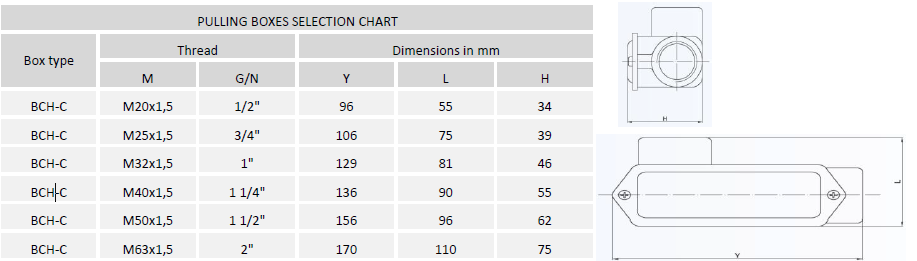

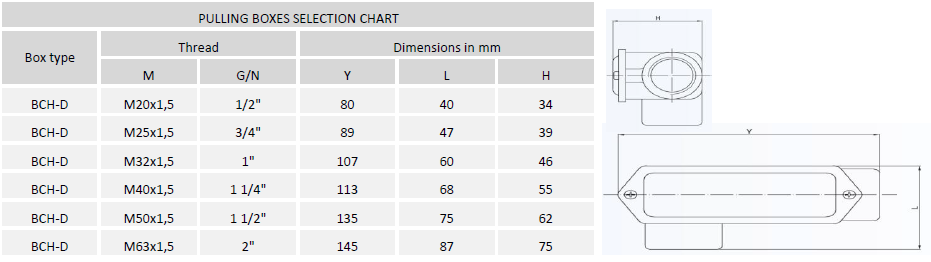

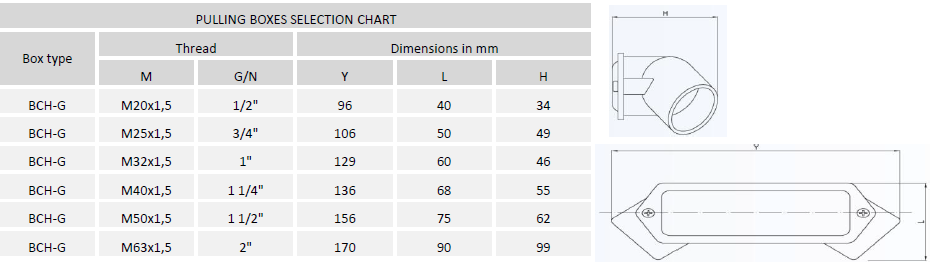

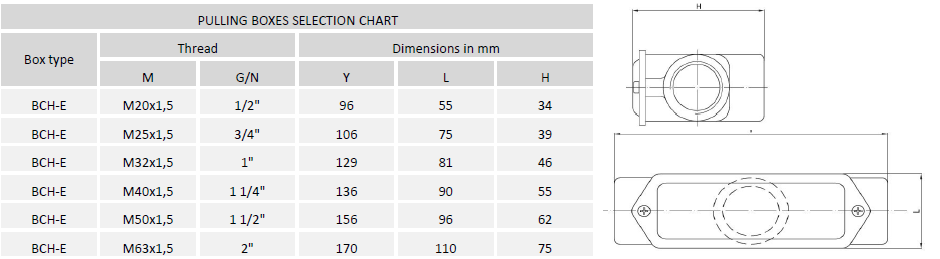

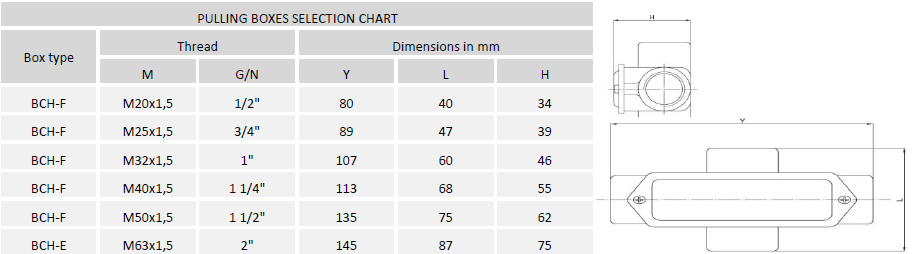

Drawings
-

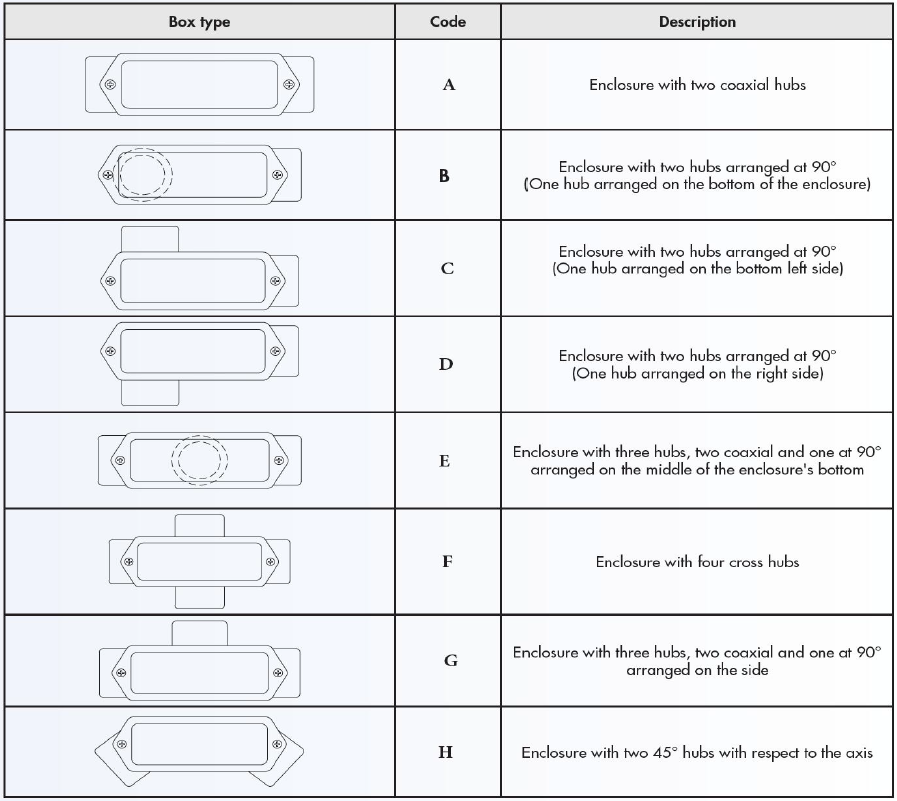

Ordering information
|
